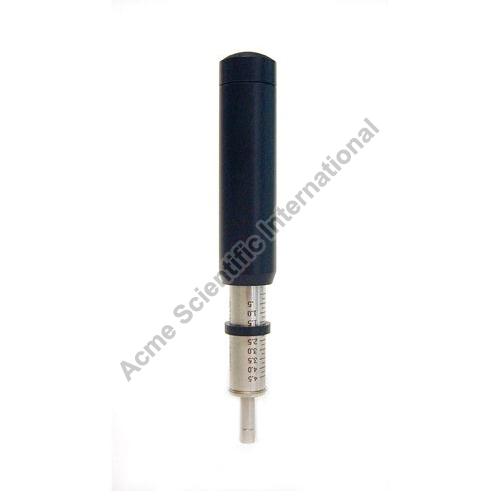

Pocket Penetrometer


Pocket Penetrometer

Specifications

Plunger(s) dia. mm 6.35
Weight Approx .: 0.5 kg
Measuring Range: 0 to 10 kgf/cm2
Power Source Electric
Usage Household, Laboratory, industrial
Material Steel
Finish Polished


We are instrumental in manufacturing and supplying quality-tested Pocket Penetrometer. The Pocket Penetrometer that we offer, is used to estimate approximate unconfined compressive strength and the estimation of shear strength of soil. Cohesive soils can also be classified in terms of consistency using this penetrometer. This is a handy and convenient instrument.

Specifications :
It consists of a light weight barrel assembly with polished and ground steel loading piston plunger. A direct reading scale is engraved on the piston barrel and indicates load in kg./sq.cm. A maximum load indicator ring is provided on the penetration plunger. The calibrated spring is heat treated and plated for rust resistance. The barrel diameter is 20 mm and the length 150 mm. Supplied in storage box.
