We manufacture and supply well designed Compaction Factor Apparatus. Now-a-days almost every soil laboratory conducts compaction and penetration tests on soils. In both standard and heavy compaction tests the operator has to count the number of blows of the rammer on each layer of soil during compaction. A mechanically cum electrically operated automatic compactor is therefore a device to eliminate tedious hand compaction process, which also considerably saves time. With the rammers provided two stroke lengths, the compactor can be used for normal compaction/heavy compaction as well as C.B.R. compaction. An automatic blow counter fitted to the compactor is used to set the number of blows. The base plate of the specimen mould is to b e fitted to the rotating base plate of the instrument which makes 1/5th revolution per stroke.
Specifications :
The equipment is suitable for operation on 230volts, 50 cycles, single phase, A.C. supply

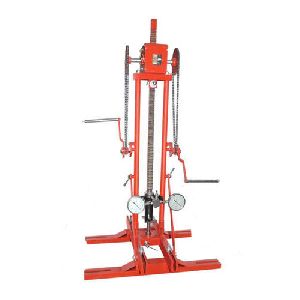

Avail from us well constructed Cone Penetrometer. The Static Cone Penetrometer with 3000 kg Capacity is repeatedly appreciated for precision. We are one of the prominent Cone Penetrometer Manufactuirers and Suppliers. The Cone Penetrometer is made available at market leading prices.
Standard :
IS: 4968-(Part III)
Details :
The drive is by means of a rack and pinion and is driven manually through a gearing arrangement. The gearbox rack and pinion are fixed on two upright pillars and the movement of the rack is guided by a bracket and two pillars. The loading is done hydraulically. Two pressure gauges 15cm dia. one of low capacity 0-60k9/sq.cm.in 0.5k9/cm. sq. divisions and other 0 -160k9/cm sq. are provided to indicate the penetration resistance. Isolation valve is provided to automatically isolate the lower range ga uge when it reaches the maximum capacity. The valve can be adjusted and locked at desired values between 20 to 60kg/cm sq. Provision is made to anchor the unit at site and there is provision for lateral shifting so that subsequent tests could be performed without having to shift the entire anchorage system.
Standard Outfit :
Penetration cone, steel 60ΓΆ€™ angle 10 sq cm base area with friction jacket -one Mantle tube, non uniform 36mm OD at the two ends and reduced diameter in
Between with sounding rod, working length 1 m............. Fifteen
Load measuring head with automatic cut-off valve and oil can. One set
Pressure Gauge 0 - 160 kg/cm sq................ One
Pressure Gauge 0 - 60 kg/cm sq.................. One
Auger with bolt
Auger driving handle
T-Rod
Spanner
Note : Uniform diameter mantle tubes can be ordered at extra cost.
We manufacture and supply top grade High Speed Stirrer. This is for mechanical analysis and also other laboratory applications for stirring speed approximately 4000 rpm under load. A dispersion cup is supported on a rest on the stand of the stirrer and has a removable baffle. For operation on 230 - 250 volts A.C. supplied without dispersion cup or baffle.
